FEATURES
|
|
|
|

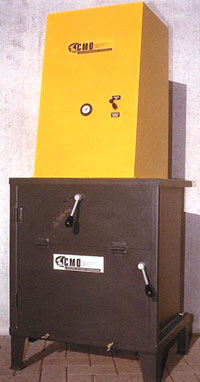

Compactor accommodates up to 6.6 gallons cylindrical container in the vertical position or 8.5 lbs of pressed paper.
|
|
|
|
Air piston with 2 spools of nylon rope for packing.
|
|
|
|
|
There is a removable tray in the bottom that catches any liquid overflow.
|
|
|
|
Two guides accommodate the nylon rope for packing.
|
|
|
|
|
The
manometer verifies the completion of compression
|
|
|
|
A big door makes it easy to fill. All doors are protected by a safety valve that blocks the stroke of piston when opened.
|
|
|
TECHNICAL SPECIFICATIONS
|
- Pressing power: 3520 lbs
- Piston stroke: 23.5"
- Total weight: 550 lbs
- Dimensions: 68"H x 23"W x 68"D
- Double doors
- Air requirements: 116 psi
|
|
