Dataliner Used Equipment for Sale
|

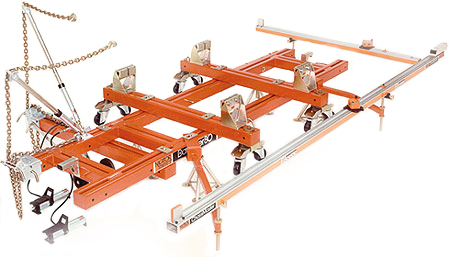

DL2-80-800R Dataliner 80/800 Bench with 2 pull complete -
Refurbished
|
|
|
|
FEATURES & TECHNICAL SPECIFICATIONS
|
|
80/800 BENCH
- A small Universal Frame Machine
- Perfect for start-up shops
- Fits into small spaces
- LIFTING CAPACITY: 3,500 kg / 7,700 lbs
- LENGTH: 4,100 mm / 13 6
- WIDTH: 900 mm / 3
- WEIGHT: 900 kg / 2,000 lbs (Total System)
- HEIGHT ABOVE FLOOR: 490-710 mm / 19 -28
DL10R Datalaser Measuring with two sighting units,
three support arms and Galaxy software
- Three rails at 2,350 mm / 7 9
- MEASUREMENT LENGTH: 4,700 mm / 15 6
- MEASUREMENT WIDTH: 2,35 cm / 7 9
>> Click here to see the DL2-80-800R in action <<
|
|
|
DL2-9000R Dataliner Drive-On with 2 pulls - Refurbished
|
|
The Dataliner DL 9000 full-size frame machine has some excellent features. It has a built in air supply system that allows you to connect air lines through out the machine.
It also has a rolling pit lift for exceptionally fast and easy mounting of the vehicle to the chassis clamps. It allows for simultaneous 360 degree pulling, single pulling or even straight-up pulling using 10 tons of power.
This frame machine is great for "light hits to hard hits". It will accommodate small unibodies, frame cars, vans and pick-up trucks. Like all our drive-ons, the 9000 is a perfect work station for mechanical work, suspension work, wheel alignment work and body work.
All the Dataliner drive-on racks are using the same hydraulic equipment.
|
|
|
360° Pulling Access
 |
Multiple Pulls For Accurate Results
 |
|
Pit Lift For Quick Loading
 |
Air Outlets All Around The Machine
 |
|
FEATURES & TECHNICAL SPECIFICATIONS
|
- LIFTING CAPACITY: 3500 KGS / 7,700 LBS
- LENGTH: 5100 MM / 16 8
- WIDTH: 1950 MM / 6 5
- WEIGHT: 900 KGS / 1980 LBS
- HEIGHT ABOVE FLOOR: 490-710 MM / 19 - 28
|
|
|
ADDITIONAL PHOTOS >> Click to Enlarge <<
|
|

|
|
DL3-9000R Dataliner Drive-On with 3 pulls - Refurbished
|
|
Dataliner DL 9000 full-size frame machine as specified above, except with three pulls.
|
|
|
ADDITIONAL PHOTOS >>Click to Enlarge <<
|
|
|
|
|
|
|
|
|
|

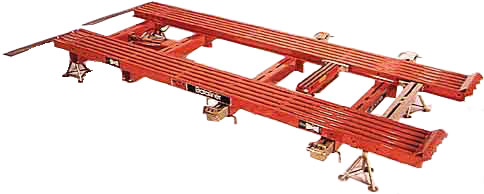

DL2-10000/GR Dataliner Drive-On with 2 pulls - Refurbished
|
|
|
|
FEATURES & TECHNICAL SPECIFICATIONS
|
|
The Dataliner DL 10000 G frame machine is our largest frame machine. It is wider and longer than any of our other machines. It will not only accommodate small unibodies, frame cars and vans but sport utility vehicles and large pick-up trucks, too.
- LIFTING CAPACITY: 3500 KGS / 7,700 LBS
- LENGTH: 6000 MM / 19 8
- WIDTH: 2286 MM / 7 6
- WEIGHT: 1250 KGS / 2750 LBS
- HEIGHT ABOVE FLOOR: 490-710 MM / 19 - 28
|
|
|
ADDITIONAL PHOTOS >>Click to Enlarge <<
|
|
|
|
|
|
Dataliner Line Laser Measuring System - Refurbished
|
|
|
|
|
Dataliner Line Laser Measuring System - Refurbished
... A Laser Aided Square Angel
The Dataliner Line Laser Measuring System consists of a length and a width measuring rail positioning around the vehicle like a square angle. It uses a Line Laser which projects the beam through an Automaster or beam splitter. Targets are hung under the chassis on bolts or in holes according to a Dataliner Data Chart printed out from a Galaxy CD-ROM. Length, width and height can be measured. The Beam Splitter can be used for upper body measurements. The McPherson Gauge will check the suspension struts.
The Dataliner Line Laser Measuring System is a high-end accurate measuring system. It is technician friendly with continuous verification while the vehicle is being pulled. The Galaxy Software enables you to print out Factory Specification, Damage Report and After Repair Report.
CM-400R includes three free stands to be used with any kind of frame machine on the market.
|
|
|
|
|
|
